潜水泵

不锈钢耐腐蚀潜水泵

TY Stainless Steel Submerged Pump

不锈钢耐腐蚀潜水泵

TY系列不锈钢潜水泵由不锈钢制成,并具有出色的耐腐蚀性。

  • 量:

    1
  • 包裹:

    Customzied
  • 颜色:

    Customzied
  • 材料:

    Steel
  • 工作温度:

    Fluoroplastic material:-20 to 200 ℃; Engineering plastic material:-20 to 80 ℃ ;Stainless steel material:-20 to 200 ℃ .
  • 工作压力:

    1.6 MPa



产品评论

Ty浸没泵的设计是根据国家标准设计的。



考虑到用户的工作条件,其淹没深度可以从1到8米不等。



泵的主体位于液体内。



该泵具有许多优势。

它具有广泛的耐腐蚀性,可确保各种环境中的耐用性。

它的高效率使其成为液体处理任务的可靠选择。

轴连接结构既安全又可靠,从而最大程度地减少了故障的风险。



此外,很容易拆卸,促进维护和维修工作。

一个特别值得注意的特征是,它可以在不需要液体填充的情况下运行。 在泵操作过程中,轴向力和径向力分别由滚动轴承和滑动轴承支持。 该设计可确保泵平稳,安静地运行,从而提供稳定,高效的性能。 产品优势
1。使用高质量的不锈钢,荧光塑料和工程塑料制造的流通道组件,例如泵外壳,泵盖和叶轮。 2。此泵没有轴密封。 ⑩ 轴承和轴套筒由石墨和四氟富洛(Tetrafluoro)等材料构建,这些材料有效地保证了泵的使用寿命。 3。它可以起作用而无需液体填充。
浸入深度有可能达到8 m。 此外,不需要独立的润滑和冷却水,从而减少了能耗。 ⑪材料清单 部分
材料 部分 ⑫材料 泵外壳
304/316/316L 轴承的前腺 ⑬HT200 泵盖
304/316/316L   前轴承 ⑭GCR15 •叶轮螺母
304/316/316L   轴承盒 ⑮HT200 £叶轮
304/316/316L   后轴承 ⑯GCR15 €轴袖
石墨/sic   背腺 ⑰HT200 €liner衬套
ptfe   括号 ⑱HT200 - 主要轴



304/316/316L



发动机



定制 :§主要管道 304/316/316L  排水管 :304/316/316L - 方板 :A3  出口法兰 :HT200

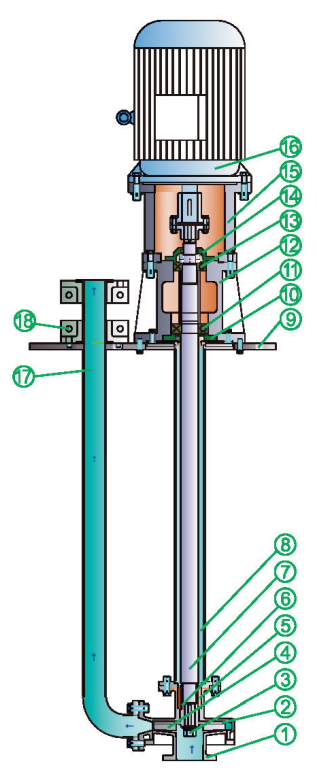

结构图 性能范围

设计压力

1.6MP



一个;

适用温度:



- 氟塑料材料:-20〜120â(任何浓度的酸碱培养基);
