磁力泵

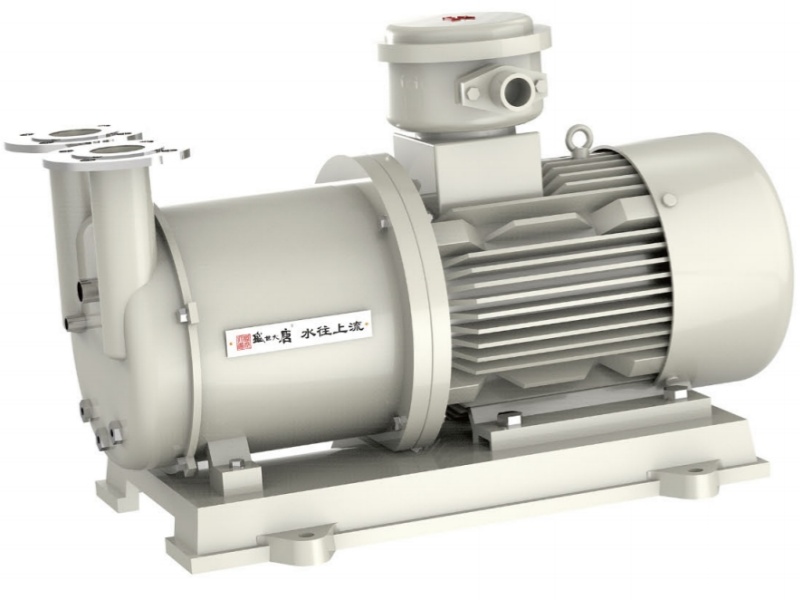

新的驱动真空磁泵

新的驱动真空磁泵

磁真空泵利用磁性耦合进行扭矩传输。

  • 产品起源:

    China, Anhui province
  • 颜色:

    Customized
  • 运输端口:

    Shanghai
  • 交货时间:

    1 Month
  • 量:

    1
  • 包裹:

    Wooden case
  • 材料:

    Stainless steel



Vacuum Pump stainless Steel Vacuum Pump Water Ring Vacuum Pump Liquid Single Stage Liquid Ring Vacuum Pump Single Stage Rotary Vane Vacuum Pump

产品  审查

TCBV系列磁真空泵是我们公司开发的一种新型工业泵。

它整合了真空泵和磁泵的特征。

该泵适用于气相和水蒸气提取,吸入压力能够达到33颗MAR绝对压力(相当于98%真空)。

如果真空泵以低于80月的吸力压力连续运行,则有必要将其连接到气体侵蚀防护管以保护泵。



The TCBV series magnetic vacuum pump is a new type of industrial pump developed by our company, combining the characteristics of vacuum pumps and magnetic pumps. It is suitable for extracting gases and water vapor, with an suction pressure that can reach 33mar absolute pressure (98% vacuum). When the vacuum pump operates for an extended period with a suction pressure below 80mar, it should be connected to a gas erosion protection tube to protect the pump. When equipped with an atmospheric injector, the suction pressure can reach 10mar, and the injector can be directly installed on the vacuum pump. When used as a compressor, its pressure can reach up to 0.26MPa (absolute pressure).

当附着大气注射器时,吸气压力可以增加到10月。

此外,喷油器可以直接安装在真空泵上。

当充当压缩机时,它可以达到的压力可以达到0.26 MPa(绝对压力)。

产品优势

1。它具有同轴直接耦合设计,不仅可以节省空间,还可以轻松安装。

2。对于磁铁,用于内部和外部磁铁,使用了samarium-cobalt和Neodymium Iron硼磁钢。



隔离套筒由非金属材料制成,并且轴承是自润滑的陶瓷角接触球轴承。

3。它仅利用Y2系列电动机,具有IP54的保护水平。 4。操作平稳,噪声水平低至60分贝。 5。它具有独特的柔性排气端口设计,可防止过度压缩,并确保TCBV系列真空泵的性能范围内的最佳效率。 性能数据 类型 最大空气量 力量
速度 流动 噪音 重量 m³/min m³/h KW
R.P.M 0.45 27 1.1 2900 2 62 37
L/min 0.86 52 2.2 2900 2 65 41
d(a) 1.33 80 3 2900 2.5 66 66
公斤 1.83 110 5.5 2900 4.2 72 85
TCBV2 060 2.75 165 5.5 1450 6.7 63 120
TCBV2 061 3.83 230 5.5 1450 8.3 68 150
TCBV2 070 4.66 280 7.5 1450 10 69 210
TCBV2 071 6.66 400 11 1450 15 73 280
TCBV5 110 8.33 500 15 980 20 74 390
TCBV5 111 2.75 165 4 1450 6.7 63 148
TCBV5 121 3.83 230 5.5 1450 8.3 68 196
TCBV5 131 4.66 280 7.5 1450 10 69 220
TCBV5 161 6.66 400 11 1450 15 73 314
TCBV6 110 8.33 500 15 980 20 74 426



TCBV6 111

TCBV6 121



TCBV6 131
