Shell And Tube Graphite Falling Film Absorber

GX Graphite Falling Film Absorber
GX Graphite Falling Film Absorber

Shell And Tube Graphite Falling Film Absorber

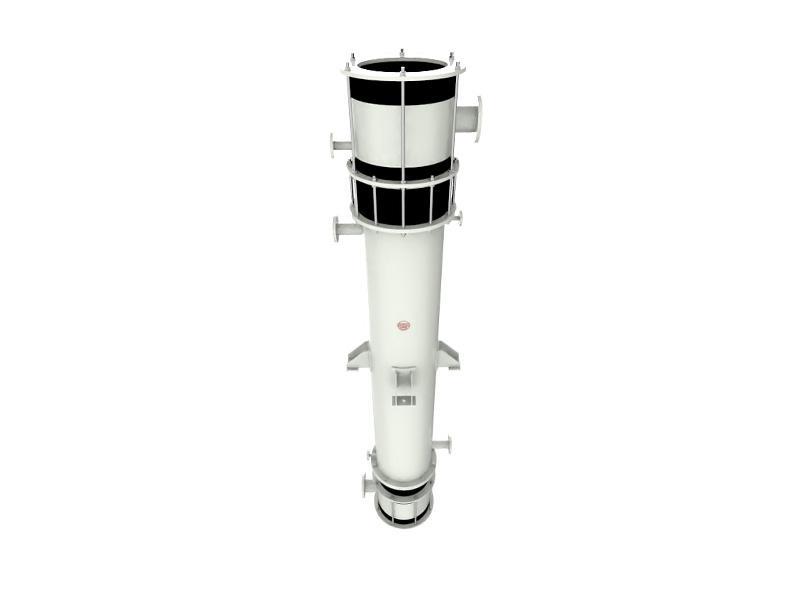

The Shell and Tube Graphite Falling Film Absorber efficiently absorbs gases using corrosion-resistant graphite, ensuring uniform liquid distribution and optimal heat transfer.

  • 支付:

    TT L/C PayPal Westunion Moneygram

  • 产品起源:

    China， Anhui province

  • 运输端口:

    Shanghai

  • 交货时间:

    1 Month

  • 量:

    1

  • 包裹:

    Wooden case

  • 颜色:

    Customzied

  • 材料:

    Graphite

  • 工作温度:

    Upper head≤170℃

  • 工作压力:

    Tube pass≤0.1MPa,Shell pass≤0.3MPa
现在询问



Product review

The equipment is primarily composed of a liquid distributor, a cooling absorption section, and a gas-liquid separator. It offers several advantages, including high absorption efficiency, high absorption intensity, high product acid concentration, low outlet temperature, convenient operation and temperature control, and the elimination of the need to cool and dry the feed gas.



Product advantages

The Shell and Tube Graphite Falling Film Absorber provides outstanding corrosion resistance, high heat transfer efficiency, even liquid distribution, long-lasting durability, and efficient gas absorption even in severe chemical environments.



Structural diagram



Parts details
1 Concentrated acid inlet
2 Dilution water inlet
3 Upper cover plate of equipment
4 Graphite upper head
5 Cooling water outlet
6 Graphite mixing chamber cylinder
7 Graphite mixing outdoor cylinder
8 Cooling water inlet
9 Graphite sieve plate
10 Cooling water outlet
11 Vent
12 Equipment support
13 Shell
14 Graphite heat exchange block
15 Drain port
16 Cooling water inlet
17 Graphite lower head



Drawing Specification Table for Tube
Model a b c d e f h s Weight
kg
da/Da DN db/Db DN DN DN de De df Df DN DN Ⅰ/Ⅱ
GX 245-3 50/110 50 70/150 80 20 50 75 170 50 130 20 50 395/285
GX 300-5 50/110 50 70/150 80 20 50 100 200 50 130 20 50 460/450
GX 350-10 50/110 50 70/150 80 20 50 125 225 70 150 20 50 595/565
GX 450-15 70/130 65 100/200 125 20 65 150 280 75 170 20 65 870/820
GX 500-20 100/170 100 125/225 150 25 65 200 335 75 170 25 65 1035/1020
GX 550-25 100/170 100 125/225 150 25 80 200 335 100 200 25 80 1255/1180
GX 600-30 125/200 125 150/280 200 25 100 225 335 100 200 25 100 1535/1435
GX 650-35 125/200 125 150/280 200 25 100 225 335 100 200 25 100 1825/1700
GX 700-40 125/200 125 150/280 200 25 100 250 395 125 225 25 100 2145/1995
GX 800-50 125/200 125 150/280 200 25 125 275 445 125 225 25 125 2675/2480
GX 850-60 150/225 150 200/335 250 32 150 300 445 150 280 32 150 3280/2985
GX 900-80 150/225 150 200/335 250 32 150 300 445 150 280 32 150 3945/3685
GX 1000-100 150/225 150 200/335 250 32 150 350 495 200 335 32 200 4595/4305
GX 1100-120 150/225 150 200/335 250 32 150 350 495 200 335 32 200 5260/4933
Pressure rating 0.6 0.6 1 0.6 0.6 0.6 1 0.6
Nozzle
usage		 Product
acid
export		 Tail gas outlet Exhaust port Water
outlet		 Gas inlet Dilute
acid
inlet		 Exhaust
port		 Water inlet



Model D n-Φ H H1 H2 H3 H4 H5 H6 H7 H8 H9 L1 L2 L3 L4
GX245-3 553 2-18 4254 380 355 1521 464 185 270 285 825 300 273 273 259 276
GX300-5 572 2-18 4309 380 365 1566 494 200 305 295 825 300 308 303 286 304
GX 350-10 623 2-23 4374 380 365 1631 534 225 350 315 835 300 333 328 310 329
GX 450-15 725 2-23 4496 400 375 1713 599 257 402 345 885 300 383 378 370 379
GX 500-20 775 2-23 4591 400 395 1798 644 297 477 355 905 300 415 405 407 404
GX 550-25 826 2-30 4658 400 395 1865 709 299 499 400 905 300 451 446 432 429
GX 600-30 898 4-30 4793 400 445 1920 749 354 539 416 950 300 476 471 460 456
GX 650-35 948 4-30 4920 470 475 1947 769 361 546 439 1055 375 501 496 491 481
GX 700-40 998 4-30 5025 470 485 2042 844 391 606 476 1075 375 531 521 516 506
GX 800-50 1099 4-30 5102 470 485 2119 894 418 653 506 1105 375 581 571 566 556
GX 850-60 1150 4-30 5240 540 500 2180 920 450 680 520 1190 540 651 631 620 581
GX 900-80 1200 4-30 5300 540 520 2240 960 480 700 540 1210 540 702 682 670 608
GX 1000-100 1300 4-30 5360 540 540 2320 1000 520 720 560 1230 540 804 784 770 658
GX 1100-120 1433 4-30 5400 540 560 2400 1060 560 740 580 1250 540 906 886 870 708
