磁力泵

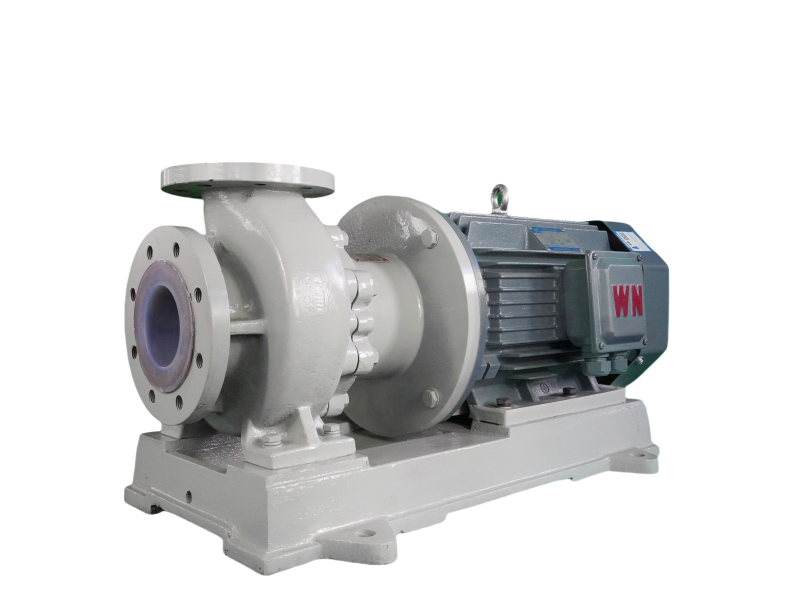

无泄漏的氟磁泵

无泄漏的氟磁泵

TCSF NO-泄漏燃料的氟磁泵。 衬有氟,可以很好地抵抗腐蚀。 磁性驱动器可确保没有泄漏,非常适合化学和工业流体转移

  • 量:

    1
  • 包裹:

    Customzied
  • 颜色:

    Customzied
  • 材料:

    Fluoroplastic
  • 工作温度:

    -20 to 120 ℃,Any concentration of acid-base medium
  • 工作压力:

    1.6 MPa

产品概述

TCSF系列固定轴 磁泵 改进并根据传统磁泵进行了优化,这会改变磁转子驱动叶轮在传统磁泵结构中旋转泵轴的结构。 结构是磁转子直接驱动叶轮旋转,轴固定并且不旋转,并且轴仅用作支撑。

产品优势

1。泵的传输效率和稳定性得到了提高,并且内部部件降低;

2。概括程度更高。 泵的磁传输部分是根据功率配置的;

3。优化磁路的设计,以使泵的制造成本较低,地板面积较小。

材料清单

部分材料部分材料部分材料
●泵主体HT200/F46/PFA●¥加固袖子窥视●‘ª括号HT200/ZG
●â泵的身体嘴环填充的PTFE/硅碳化物●密封环氟化物/特氟龙●‘«根据HT200/通道钢
●¢泵轴碳化硅/无压●§轴袖SIC/无压●‘¬发动机根据客户端请求
●£叶轮组件45#F46/PFA/永久磁铁●•间隔轴承SIC/无压
●ρ隔离套F46/PTFE●©外转子组件HT250/永久磁铁

结构图

性能数据

类型额定功率额定流程评分头电压泵外壳材料
32-20-115F3. 2380VF4/F46/F5032*20
40-25-120f6. 3380VF4/F46/F5040*25
40-40-120f6. 3380VF4/F46/F5040*40
50-32-120F12. 5380VF4/F46/F5050*32
25-20-1251. 12. 520380VF4/F46/F5025*20
25-20-1602. 22. 532380VF4/F46/F5025*20
25-20-20042. 550380VF4/F46/F5025*20
25-20-2507. 52. 580380VF4/F46/F5025*20
32-20-1251. 13. 220380VF4/F46/F5032*20
32-20-16033. 232380VF4/F46/F5032*20
32-20-20043. 250380VF4/F46/F5032*20
32-20-2507. 53. 280380VF4/F46/F5032*20
40-25-1252. 26. 320380VF4/F46/F5040*25
40-25-16036. 332380VF4/F46/F5040*25
40-25-2005. 56. 350380VF4/F46/F5040*25
40-25-250116. 380380VF4/F46/F5040*25
40-25-3156. 3125380VF4/F46/F5040*25
50-32-125312. 520380VF4/F46/F5050*32
50-32-160412. 532380VF4/F46/F5050*32
50-32-2007. 512. 550380VF4/F46/F5050*32
50-32-2501112. 580380VF4/F46/F5050*32
50-32-31512. 5125380VF4/F46/F5050*32
65-50-12542520380VF4/F46/F5065*50
65-50-1605. 52532380VF4/F46/F5065*50
65-40-200112550380VF4/F46/F5065*40
65-40-25018. 52580380VF4/F46/F5065*40
65-40-3153725125380VF4/F46/F5065*40
80-65-1257. 55020380VF4/F46/F5080*65
80-65-160115032380VF4/F46/F5080*65
80-50-200155050380VF4/F46/F5080*50
80-50-250305080380VF4/F46/F5080*50
80-50-3154550125380VF4/F46/F5080*50
100-80-1251110020380VF4/F46/F50100*80
100-80-16018. 510032380VF4/F46/F50100*80
100-65-2003010050380VF4/F46/F50100*65
100-65-2504510080380VF4/F46/F50100*65
100-65-31575100125380VF4/F46/F50100*65
125-80-1603016032380VF4/F46/F50125*80
125-100-2005520050380VF4/F46/F50125*100
125-100-2507520080380VF4/F46/F50125*100
125-100-31522100125380VF4/F46/F50125*100
125-100-4003710050380VF4/F46/F50125*100
150-125-2502220020380VF4/F46/F50150*125
150-125-3154520032380VF4/F46/F50150*125
150-125-4005520050380VF4/F46/F50150*125
200-150-2505540020380VF4/F46/F50200*150
200-150-3157540032380VF4/F46/F50200*150
200-150-40011040050380VF4/F46/F50200*150

性能范围

设计压力: 1。6mpa, 流动: 0。75〜460立方米/ h, 举起: 5〜125 m, 力量: 0。55〜110 kW。

适用温度:-20〜120●,酸 - 任何浓度的基础培养基。

产品应用

它被广泛用于石油,化学工业,酸生产,碱性,冶炼,稀土,农药,染料,药物,造纸,电镀,电解,电解,腌制等。
