Industrial Shell & Tube Graphite Falling Film Absorber

GX type falling film shell and tube graphite absorber
GX type falling film shell and tube graphite absorber
GX type falling film shell and tube graphite absorber
GX type falling film shell and tube graphite absorber

Industrial Shell & Tube Graphite Falling Film Absorber

Shell and tube graphite falling film absorbers are specialized devices used in various industrial applications for their excellent thermal and chemical resistance properties. These absorbers are designed to efficiently absorb gases while providing effective cooling and separation processes.

  • 支付:

    TT L/C PayPal Westunion Moneygram

  • 产品起源:

    China， Anhui province

  • 颜色:

    white

  • 运输端口:

    shanghai

  • 交货时间：

    1 month

  • 量:

    1

  • 包裹:

    wooden case

  • 颜色:

    white

  • 材料:

    graphite

  • 工作温度:

    ≤170℃

  • 工作压力:

    Tube≤0.1MPa Shell≤0.3MPa
现在询问



Graphite Heat Exchanger

Product review

This equipment primarily consists of a liquid distributor, a cooling and absorption section, and a gas-liquid separator. It features high absorption efficiency, high absorption intensity, high product acid concentration, low outlet temperature, convenient operation and control, and the absence of the need to cool and dry the raw gas.





graphite Block Heat Exchanger
  • Product advantages
  • 1. High Structural Strength: The graphite structure offers remarkable mechanical strength and long-lasting durability.
  • 2. Good Thermal Shock Resistance: Capable of withstanding abrupt temperature variations without incurring substantial damage.
  • 3. Easy Maintenance: Thanks to its modular design, damaged sections can be swiftly replaced, thereby minimizing downtime and maintenance expenses.

Parts Details

1 Parts details 10 Graphite sieve plate
2 Concentrated acid inlet 11 Cooling water outlet
3 Dilution water inlet 12 Vent
4 Upper cover plate of equipment 13 Equipment support
5 Graphite upper head 14 Shell
6 Cooling water outlet 15 Graphite heat exchange block
7 Graphite mixing chamber cylinder 16 Drain port
8 Graphite mixing outdoor cylinder 17 Cooling water inlet
9 Cooling water inlet 18 Graphite lower head



Structure Size

Model D n-Φ H H1 H2 H3 H4 H5 H6 H7 H8 H9 L1 L2 L3 L4
GX245-3 553 2-18 4254 380 355 1521 464 185 270 285 825 300 273 273 259 276
GX300-5 572 2-18 4309 380 365 1566 494 200 305 295 825 300 308 303 286 304
GX 350-10 623 2-23 4374 380 365 1631 534 225 350 315 835 300 333 328 310 329
GX 450-15 725 2-23 4496 400 375 1713 599 257 402 345 885 300 383 378 370 379
GX 500-20 775 2-23 4591 400 395 1798 644 297 477 355 905 300 415 405 407 404
GX 550-25 826 2-30 4658 400 395 1865 709 299 499 400 905 300 451 446 432 429
GX 600-30 898 4-30 4793 400 445 1920 749 354 539 416 950 300 476 471 460 456
GX 650-35 948 4-30 4920 470 475 1947 769 361 546 439 1055 375 501 496 491 481
GX 700-40 998 4-30 5025 470 485 2042 2042 844 391 476 1075 375 531 521 516 506
GX 800-50 1099 4-30 5102 470 485 2119 894 418 653 506 1105 375 581 571 566 556
GX 850-60 1150 4-30 5240 540 500 2180 920 450 680 520 1190 540 651 631 620 581
GX 900-80 1200 4-30 5300 540 520 2240 960 480 700 540 1210 540 702 682 670 608
GX 1000-100 1300 4-30 5360 540 540 2320 1000 520 720 560 1230 540 804 784 770 658
GX 1100-120 1433 4-30 5400 540 560 2400 1060 560 740 580 1250 540 906 886 870 708





Applications

 Shell and tube graphite falling film absorbers are versatile and robust devices designed for efficient gas absorption and heat exchange in demanding industrial environments. Their unique construction and features make them an ideal choice for applications where reliability, durability, and performance are critical.

Industrial Use: Commonly used in industries such as chemical processing, pharmaceuticals, and environmental protection for gas absorption and cooling processes.

Gas Absorption: Particularly effective for absorbing gases like HCl, SO2, NH3, P2O5, and H2S, making it a valuable tool in pollution control and waste gas treatment.



Others



相关标签 : 石墨热交换器 抗酸性热交换器 石墨外壳和管热交换器
留言
如果您对我们的产品感兴趣并且想知道更多详细信息，请在此处留言，我们会尽快回复您。
提交

相关产品

YKX graphite falling film absorber
Round Hole Type Graphite Falling Film Absorber

The round block hole graphite falling film absorber efficiently cools and absorbs gases using a vertical, corrosion-resistant graphite structure with uniform liquid distribution.

细节
GX Graphite Falling Film Absorber
Shell And Tube Graphite Falling Film Absorber

The Shell and Tube Graphite Falling Film Absorber efficiently absorbs gases using corrosion-resistant graphite, ensuring uniform liquid distribution and optimal heat transfer.

细节
KXG Graphite Falling Film Absorber
New Round Block Hole Graphite Falling Film Absorber

The New Round Block Hole Graphite Falling Film Absorber efficiently absorbs gases using graphite blocks with hole structures, enhancing heat and mass transfer.

细节
YKC graphite heat exchanger
Round Hole Type Graphite Heat Exchanger

Spherical block hole type graphite heat exchanger, a highly durable and efficient heat transfer apparatus commonly employed in various industrial sectors such as chemical, petrochemical, and pharmaceutical industries for precise temperature control and effective heat exchange.

细节
SCH Type heat exchanger silicon carbide applied for heating, evaporation, cooling, condensation and heat recovery of materials
Tubular Silicon Carbide Heat Exchanger

The shell-and-tube silicon carbide heat exchanger is composed of silicon carbide tubes sealed with tube sheets to form a tube bundle placed inside a cylindrical shell. Ends are equipped with end caps. One fluid flows inside the tubes and the other outside. It's suitable for highly corrosive chemicals, used for cooling, heating, condensation, etc.

细节
FB Single-stage Single-suction Cantilever Corrosion-resistant Centrifugal Pump
Single-stage Cantilever Corrosion-resistant Centrifugal Pump

The FB single - stage single - suction cantilever corrosion - resistant centrifugal pump is engineered with precision. It has high durability and excels in handling corrosive liquids, being a reliable fluid - handling choice.

细节

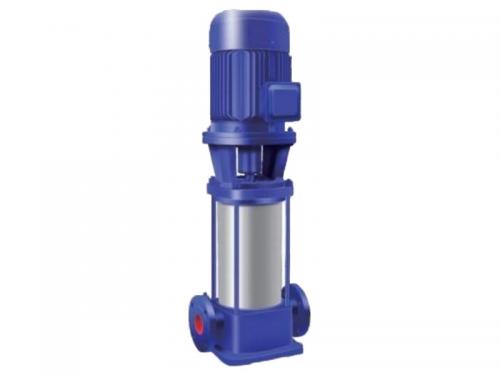

GDL Vertical Multistage Pipeline Pump
