石墨降膜吸收器

New Round Block Hole Graphite Falling Film Absorber

New Round Block Hole Graphite Falling Film Absorber

The New Round Block Hole Graphite Falling Film Absorber efficiently absorbs gases using graphite blocks with hole structures, enhancing heat and mass transfer.

  • 支付:

    TT L/C PayPal Westunion Moneygram
  • 产品起源:

    China, Anhui province
  • 运输端口:

    Shanghai
  • 交货时间:

    1 Month
  • 量:

    1
  • 包裹:

    Wooden case
  • 颜色:

    customzied
  • 材料:

    Graphite
  • 工作温度:

    ≤170℃
  • 工作压力:

    Vertical≤0.1Mpa,Horizontal≤0.4Mpa



Product review

The structure represents a modified version of the YKX graphite falling film absorber. The absorption heat exchange element features a structure without a central through hole. It is characterized by its compactness, relatively high material utilization rate, and is a gas absorption equipment with outstanding performance.



Product advantages

The New Round Block Hole Graphite Falling Film Absorber provides outstanding corrosion resistance, high thermal conductivity, efficient gas absorption capabilities, durability, and improved heat transfer performance.

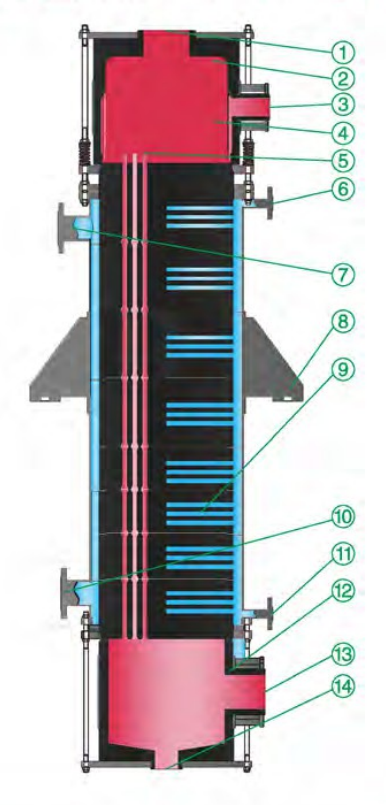

Structural diagram





Parts details
1 Air inlet
2 Graphite gas-liquid mixing chamber
3 Liquid inlet
4 Graphite pressure stabilizing ring
5 Graphite distribution head
6 Vent
7 Cooling water outlet
8 Equipment support
9 Graphite heat exchange block
10 Cooling water inlet
11 Drain port
12 Gas liquid separation chamber
13 Tail gas outlet
14 Acid outlet





Drawing Specification Table for Tube

Model a.e Tube b.c Tube
DN
f.g Tube
DN
d Tube h Tube
D1 D2 D3 D4 D5 D6
KXG40 65 160 50 20 150 295 75 180
KXG50 75 180 65 20 200 350 100 210
KXG60 100 210 80 20 250 400 125 240
KXG70 100 210 100 25 250 400 200 350
KXG80 125 240 100 25 300 460 250 400
KXG90 125 240 150 25 300 460 250 400



Others

留言
如果您对我们的产品感兴趣并且想知道更多详细信息,请在此处留言,我们会尽快回复您。
提交

相关产品

GX type falling film shell and tube graphite absorber
Industrial Shell & Tube Graphite Falling Film Absorber

Shell and tube graphite falling film absorbers are specialized devices used in various industrial applications for their excellent thermal and chemical resistance properties. These absorbers are designed to efficiently absorb gases while providing effective cooling and separation processes.

细节
YKX graphite falling film absorber
Round Hole Type Graphite Falling Film Absorber

The round block hole graphite falling film absorber efficiently cools and absorbs gases using a vertical, corrosion-resistant graphite structure with uniform liquid distribution.

细节
GX Graphite Falling Film Absorber
Shell And Tube Graphite Falling Film Absorber

The Shell and Tube Graphite Falling Film Absorber efficiently absorbs gases using corrosion-resistant graphite, ensuring uniform liquid distribution and optimal heat transfer.

细节
Graphite Hydrochloric Acid Synthesis Furnace
钢壳HCL石墨合成炉

Using corrosion-resistant graphite, the Water Jacket Graphite Hydrogen Chloride Synthesis Furnace can produce HCl efficiently, thus ensuring precise temperature control and optimal reaction conditions.

细节

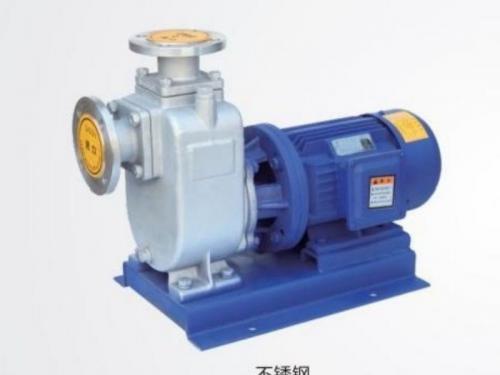

Self-priming pump
