多级离心泵

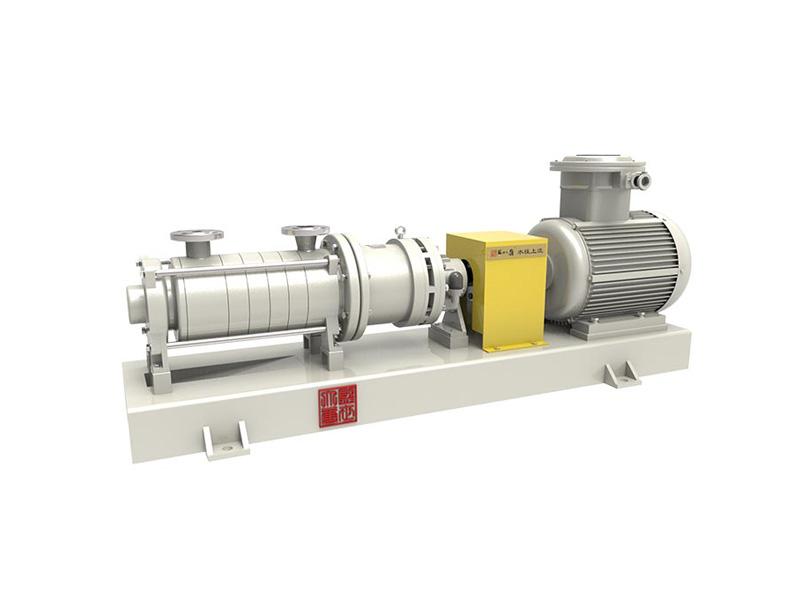

无泄漏的多级磁泵

high efficiency multistage magnetic pump

无泄漏的多级磁泵

TCD否 - 泄漏多稳定磁泵。 使用多阶段结构,它可以产生高压。 磁耦合可以保证不会泄漏,这是许多领域中精确的流体处理的完美之处

  • 量:

    1
  • 包裹:

    Customzied
  • 颜色:

    Customzied
  • 材料:

    Steel
  • 工作温度:

    -60 to 300 ℃,New material withstands temperatures up to 450°C
  • 工作压力:

    1.6 to 6.3 MPa

产品概述

TCD无泄漏的多稳态磁泵是由我们公司设计的,目的是解决流体运输问题,并以较小的流量和高头为单位。 它的结构,液压电路设计采用了先进和新型技术,并且磁性驱动技术成功地应用于多级磁离心泵,该泵解决了轴向力平衡的问题以及高功率下的多级泵的静态密封,大型间隙磁路电路设计和高工作压力。

High Temperature Oem Moq 1pc Fully Automatic Magnetic Pump Liquid Filling Machine 2hp-75hp Single-stage Liquid Transfer Pump Magnetic Drive Gear Pump outlet Size 20mm-100mm Magnetic Drive Chemical Centrifugal Pump
  • 产品优势
  • 1。用于石化过程的TCD泄漏无泄漏的多级磁泵是由我们公司开发和设计的
  • 2。流通道零件的材料,例如泵主体,内部转子,泵盖,叶轮,隔离套筒和UMP轴,可以由304,316,316L,904,TA2,HC276和其他材料制成;
  • 3。移动的环,轴套筒和滑动轴承由高磨损 - 耐温和的晶体碳化硅,碳化钨和其他材料制成,具有高强度,良好的耐磨性,良好的耐磨性和强烈的耐腐蚀性,以确保泵的使用寿命。

材料清单

部分材料部分材料部分材料
●‘封面304/316/316L●‘«挡板袖304/316/316L㉓耦合HT200
●‘¡叶轮螺母304/316/316L●‘¬中间盖板304/316/316L㉔发动机每个客户要求
●‘¢叶轮304/316/316L●‘­后盖板304/316/316L㉕基板HT200
●‘£泵主体304/316/316L●‘®中法兰304/316/316L㉖驱动轴2CR13
●‘¤指南叶片304/316/316L●‘¯括号HT200㉗支架板HT200
●‘¥中间304/316/316L●‘°外磁铁组件允许的磁铁/ZG㉘圆形螺母45
●‘¦返回线304/316/316L●‘±距离袖子316/316L㉙转子螺母304/316/316L
●‘§前轴承座304/316/316L●‘²转子组件

允许的磁铁

/304/316/316L

㉚背推领SSIC/硬合金
●‘¨前轴承SSIC/硬合金●‘³括号45㉛后轴承SSIC/硬合金
●‘©前轴承套SSIC/硬合金㉑轴承盒HT200㉜后轴承套SSIC/硬合金
●‘ª泵轴304/316/316L㉒202㉝前推领SSIC/硬合金

结构图

性能范围

设计压力:1。6〜6。 3MPA, 流动 :3~155m³/h, 举起 :20〜603m, 力量 :5。5〜315kW。

适用温度:-60〜300●采用新材料,并且耐温性可以达到450●。

产品应用

广泛用于石油,化学工业,酸性,碱性,冶炼,稀土,农药,染料,染料,造纸,电镀,电解,腌制,腌制和其他生产过程,以运输腐蚀性液体。
