磁力泵

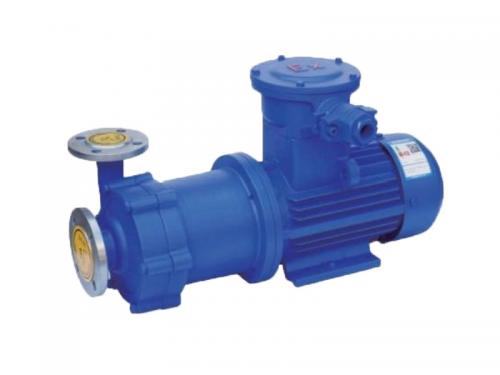

耐热化学工业磁泵

耐热化学工业磁泵

磁泵是新的生成离心泵。它由泵,磁执行器和电动机组成。磁力传输扭矩,消除泄漏。它具有腐蚀 - 耐药性,适用于化学和药物等各种行业。

  • 量:

    1
  • 包裹:

    Customzied
  • 颜色:

    Customized
  • 材料:

    Steel
  • 工作温度:

    -60 to 300 ℃
  • 工作压力:

    1.6 to 6.3 MPa
Anhui Shengshi Datangchemical Equipment Group Co,Ld。
集成了无泄漏磁泵,石墨设备和完整耐腐蚀设备的研发,生产,销售和服务。

产品审查

根据GB / T25140-2010,无泄漏的磁泵是一种使用现代磁力学原理的新型泵磁铁可实现扭矩的非接触式传输。由于介质被封闭在静态隔离套筒中,因此可以实现泵送培养基而没有泄漏的目的,并且完全解决了机械驱动泵的轴密封泄漏的问题。

产品优势

1.磁铁采用铁氧体磁铁,ND-FE-B和SAMARIUM COBALT,具有良好的磁性,高温耐药性和无去磁性;

2。轴套筒和滑动轴承由高磨损的碳化硅,石墨,四氟氟氟此类和其他材料制成,并配备了润滑凹槽,以有效地确保泵的使用寿命。

结构图

部分材料部分材料部分材料
●泵主体304/316/316L●¥推力项圈硬质合金●back螺母304/316/316L
●€叶轮螺母304/316/316L●pump盖304/316/316L●«Out Magnet永久磁铁 /HT200
●¢叶轮304/316/316L●§gasketptfe●连接HT200
●主轴304/316/316L●`电袖304/316/316L●电机按照客户的要求
●3轴套筒石墨/sic●©内磁铁永久磁铁/304/316/316L●®base板HT200

结构图

性能数据

类型额定功率额定流程评分头电压泵外壳材料
25-20-1252.22.520380V304/316/316L25*20
25-20-16032.532380V304/316/316L25*20
25-20-2005.52.550380V304/316/316L25*20
25-20-250112.580380V304/316/316L25*20
32-20-1252.23.220380V304/316/316L32*20
32-20-16033.232380V304/316/316L32*20
32-20-2005.53.250380V304/316/316L32*20
32-20-250113.280380V304/316/316L32*20
40-25-1252.26.320380V304/316/316L40*25
40-25-16036.332380V304/316/316L40*25
40-25-2005.56.350380V304/316/316L40*25
40-25-250116.380380V304/316/316L40*25
50-32-125312.520380V304/316/316L50*32
50-32-160412.532380V304/316/316L50*32
50-32-2007.512.550380V304/316/316L50*32
50-32-2501512.580380V304/316/316L50*32
65-50-12542520380V304/316/316L65*50
65-50-1607.52532380V304/316/316L65*50
65-40-200152550380V304/316/316L65*40
65-40-25018.52580380V304/316/316L65*40
80-65-1257.55020380V304/316/316L80*65
80-65-160155032380V304/316/316L80*65
80-50-20018.55050380V304/316/316L80*50
100-80-1251510020380V304/316/316L100*80
100-80-16018.510032380V304/316/316L100*80

性能范围

设计压力:1.6〜6.3mpa, 流动: 0.75〜460m³/h, 举起: 5〜125m, 力量: 0.55〜110kW

适用温度:-60〜300●采用新材料,并且抗温度的能力可以达到450●。

产品应用

它被广泛用于在石油,化学工业,碱制造,冶炼,稀土,农药,染料,染料,染料,电镀,电解,电解等的生产过程中运输腐蚀性液体。
