No Leakage Fluorine Lined Magnetic Pump

Fluorine Lined Magnetic Pump
Fluorine Lined Magnetic Pump
Fluorine Lined Magnetic Pump

No Leakage Fluorine Lined Magnetic Pump

The no-leakage fluorine-lined magnetic pump is characterized by its high corrosion resistance, which is attributed to the fluorine lining. The magnetic drive mechanism ensures a hermetic seal, preventing any leakage, and making it suitable for a wide range of fluid transfer applications.

  • 量:

    1

  • 包裹:

    Customized

  • 颜色:

    Customized

  • 材料:

    HT200 lined F46

  • 工作温度:

    -20 to 120°C; -20 to 80°C.

  • 工作压力:

    1.6 MPa
现在询问



No Leakage Fluorine Lined Magnetic Pump

Product overview

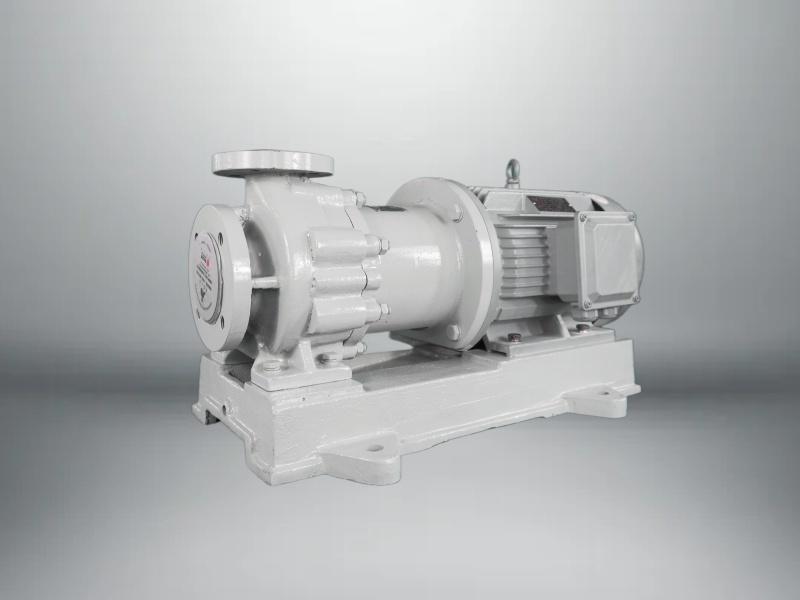

The TCF leakage-free fluorine-lined magnetic pump represents a novel type of magnetic pump. It operates based on the principles of modern magnetomechanics and utilizes the magnetic transmission capabilities of permanent magnets to achieve non-contact torque transmission. All the parts that come into contact with the fluid (overflow parts) are crafted from fluoroplastic. This enables the pump to handle and transport corrosive media, including acids, alkalis, and oxidants, regardless of their concentration (strength).

No Leakage Fluorine Lined Magnetic Pump

Product advantages

1. The pump body is constructed using cast iron, carbon steel, 304, or 316L, with a lining of fluoroplastics. Meanwhile, the inner rotor, pump cover, impeller, isolation sleeve, and other components that come into contact with the fluid (overflow parts) are fabricated with metal inserts that are encapsulated in fluoroplastics.

2. The magnet employed is a novel type of permanent magnet, which exhibits excellent magnetic properties, high temperature resistance, and no demagnetization.

3. The shaft sleeve and sliding bearing are made from highly wear-resistant materials such as silicon carbide, graphite, and tetrafluoro. Additionally, they are equipped with lubrication grooves, which effectively ensure the service life of the pump. The seal utilized is a closed static seal, which completely resolves the issue of medium leakage. Moreover, it eliminates the necessity for independent lubrication and cooling water, thereby reducing energy consumption.



Material List

Part Material Part Material Part Material
①Pump body HT200 lined F46 ⑤Axle sleeve Impregnated graphite/SIC ⑨Rear nut Tetrafluoro
②impeller nut HT200 lined F46 ⑥Pump cover HT200 lined F46 ⑩External magnetic Permanent magnetic/HT200 lined F46
③impeller F50 ⑦Spacer sleeve PEEK/F46 ⑪ Connecting frame HT200
④shaft SIC ⑧Internal magnetic Permenant magnetic/HT200 lined F46 ⑫ Electric motor Customized

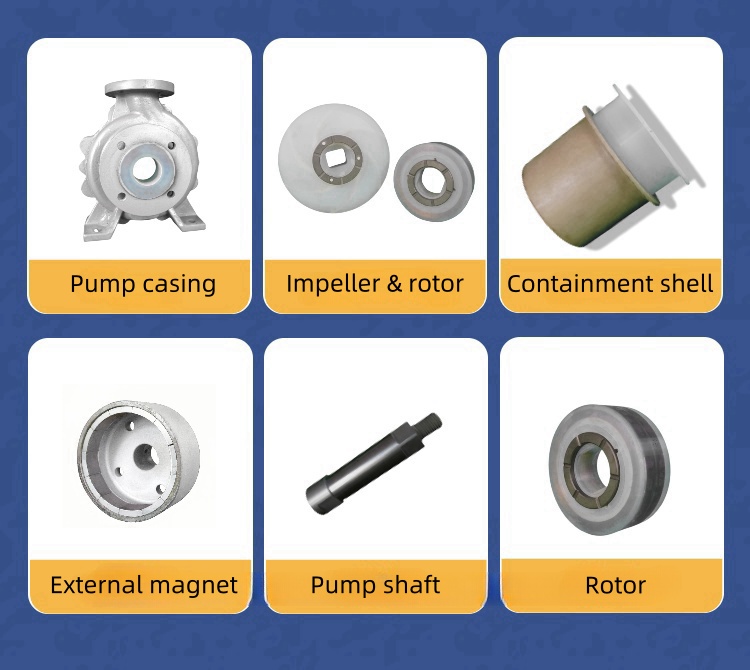

Structural diagram

No Leakage Fluorine Lined Magnetic Pump



Performance Data

Type Rated power Rated flow Rated head Voltage Pump casing material Suction
40-25-125 2.2 6.3 20 380V HT200 lined F46 40*25
40-25-160 3 6.3 32 380V HT200 lined F46 40*25
40-25-200 5.5 6.3 50 380V HT200 lined F46 40*25
40-25-250 11 6.3 80 380V HT200 lined F46 40*25
40-25-315   6.3 125 380V HT200 lined F46 40*25
50-32-125 2.2 12.5 20 380V HT200 lined F46 50*32
50-32-160 4 12.5 32 380V HT200 lined F46 50*32
50-32-200 7.5 12.5 50 380V HT200 lined F46 50*32
50-32-250 15 12.5 80 380V HT200 lined F46 50*32
50-32-315   12.5 125 380V HT200 lined F46 50*32
65-50-125 4 25 20 380V HT200 lined F46 65*50
65-50-160 5.5 25 32 380V HT200 lined F46 65*50
65-40-200 11 25 50 380V HT200 lined F46 65*40
65-40-250 18.5 25 80 380V HT200 lined F46 65*40
65-40-315 37 25 125 380V HT200 lined F46 65*40
80-65-125 7.5 50 20 380V HT200 lined F46 80*65
80-65-160 11 50 32 380V HT200 lined F46 80*65
80-50-200 18.5 50 50 380V HT200 lined F46 80*50
80-50-250 30 50 80 380V HT200 lined F46 80*50
80-50-315 55 50 125 380V HT200 lined F46 80*50
100-80-125 11 100 20 380V HT200 lined F46 100*80
100-80-160 18.5 100 32 380V HT200 lined F46 100*80
100-65-200 30 100 50 380V HT200 lined F46 100*65
100-65-250 45 100 80 380V HT200 lined F46 100*65
100-65-315 75 100 125 380V HT200 lined F46 100*65
125-80-160 30 160 32 380V HT200 lined F46 125*80
125-100-200 55 100 50 380V HT200 lined F46 125*100
125-100-250 75 100 80 380V HT200 lined F46 125*100
125-100-315 22 100 125 380V HT200 lined F46 125*100
125-100-400 37 100 50 380V HT200 lined F46 150*125
150-125-250 22 200 20 380V HT200 lined F46 150*125
150-125-315 45 200 32 380V HT200 lined F46 150*125
150-125-400 55 200 50 380V HT200 lined F46 150*125
200-150-250 55 400 20 380V HT200 lined F46 200*150
200-150-315 75 400 32 380V HT200 lined F46 200*150
200-150-400 110 400 50 380V HT200 lined F46 200*150



Performance range



Design pressure: 1.6 MPa, Flow: 0.5~240 m³/h, Head: 20~125 m, Power: 1.1~55 KW.

Applicable temperature: ①Fluoroplastic material acid-base medium of any concentration -20~120°C;

                                          ②Engineering plastic material, dilute acid and alkali medium -20~80°C.



Product application

It finds extensive application in the transportation of corrosive liquids within the production processes of various industries, including petroleum, chemical engineering, acid production, alkali production, smelting, rare earth extraction, pesticide manufacturing, dye production, pharmaceuticals, papermaking, electroplating, electrolysis, and pickling. It is particularly suitable for transporting flammable, explosive, volatile, toxic, strong acid-base, organic agents, and precious liquids.



Others
