Three-in-one Hydrochloric Acid Synthesis Furnace

SHL 3 In 1 Hydrochloric Acid Synthesis Furnace System
SHL 3 In 1 Hydrochloric Acid Synthesis Furnace System

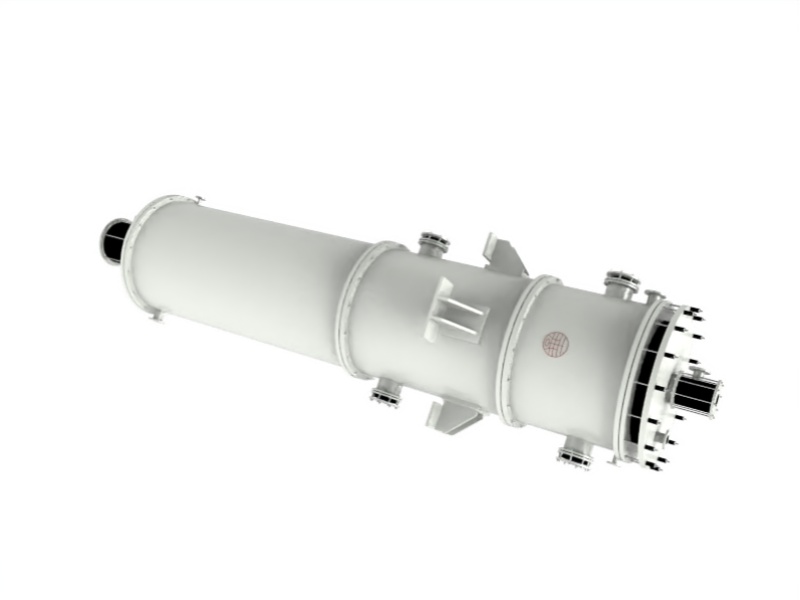

Three-in-one Hydrochloric Acid Synthesis Furnace

The Block-hole Three-in-one Hydrochloric Acid Synthesis Furnace integrates the functions of reaction, heat exchange, and product treatment. It is highly efficient and stable in the production of HCl, enabling energy savings and ensuring operational safety.

  • 支付:

    TT L/C PayPal Westunion Moneygram

  • 运输端口:

    shanghai

  • 交货时间：

    1 month

  • 量:

    1

  • 包裹:

    wooden case

  • 颜色:

    white

  • 材料:

    graphite stainless steel

  • 工作温度:

    graphite wall≤170℃ acid producing ≤45℃
现在询问



Hydro Chloric Hcl Acid Gas Synthesis Furnace System Holistic Solution Provider Graphite Synthetic Furnace factory Direct Supply Chlor-alkali Production Line Hydro Cloric Hcl Acid Graphite Synthesis Furnace Hcl Acid Stove holistic Solution Provider Hydro Chloric Hcl Acid Gas Graphite Synthetic Furnace

Product review

This equipment features a compact structure and a small footprint. It offers high production efficiency, producing product acid with a high degree of purity. Moreover, it is easy to control, demonstrating a high comprehensive volume efficiency in synthesis, absorption, and cooling processes, along with a high absorption intensity.



It has the capacity to significantly enhance production capabilities while simplifying the production process. Overall, it is a type of hydrochloric acid production equipment that is characterized by high strength and high efficiency.



Hydro Chloric Hcl Acid Gas Synthesis Furnace System Holistic Solution Provider Graphite Synthetic Furnace factory Direct Supply Chlor-alkali Production Line Hydro Cloric Hcl Acid Graphite Synthesis Furnace Hcl Acid Stove holistic Solution Provider Hydro Chloric Hcl Acid Gas Graphite Synthetic Furnace

1. Block Hole Structure

The furnace might incorporate a distinctive block hole design. This block hole structure plays a crucial role in evenly dispersing the reactant gases throughout the furnace. Take the synthesis of hydrochloric acid from hydrogen and chlorine as an example. The block hole design enables these two gases to interact thoroughly, thereby expanding the effective reaction area and enhancing the reaction efficiency.

The dimensions, shape, and layout of the block holes are meticulously engineered. Suitably sized block holes are essential as they prevent the blockage of reactants or products within the furnace, thus ensuring the seamless continuation of the reaction process.



2. Three-in-one Functional Integration

The concept of "three-in-one" typically involves the integration of multiple functions. For instance, it could combine functions such as facilitating the reaction, enabling heat exchange, and performing preliminary product treatment within a single furnace body.

During the acid synthesis process, the reaction is frequently accompanied by either the release or absorption of heat. The three-in-one design allows for efficient heat transfer within the furnace. For example, through specialized heat exchange pipes or jacket structures, it can maintain the specific temperature conditions necessary for the reaction, while simultaneously preventing any local overheating or overcooling that could potentially disrupt the reaction process.

Parts Details

1 Chlorine inlet 11 Mirror port
2 lamp holder 12 absorbs fast
3 Hydrogen inlet 13 Cooling outlet
4 acid inlet 14 lower head
5 upper head 15 Drain port
6 water outlet 16 gas port
7 Vent 17 water inlet
8 Mirror 18 liquid separator
9 synthesis section 19 discharge inlet
10 membrane port 20 Acid outlet



Hydro Chloric Hcl Acid Gas Synthesis Furnace System Holistic Solution Provider Graphite Synthetic Furnace factory Direct Supply Chlor-alkali Production Line Hydro Cloric Hcl Acid Graphite Synthesis Furnace Hcl Acid Stove holistic Solution Provider Hydro Chloric Hcl Acid Gas Graphite Synthetic Furnace



Hydro Chloric Hcl Acid Gas Synthesis Furnace System Holistic Solution Provider Graphite Synthetic Furnace factory Direct Supply Chlor-alkali Production Line Hydro Cloric Hcl Acid Graphite Synthesis Furnace Hcl Acid Stove holistic Solution Provider Hydro Chloric Hcl Acid Gas Graphite Synthetic Furnace





Specification

  YKSL-30 YKSL-30 YKSL-40 YKSL-40 YKSL-50 YKSL-50 YKSL-60 YKSL-60
  Nominal diameter Connec- tion size Nominal diameter Connec- tion size Nominal diameter Connec- tion size Nominal diameter Connec- tion size
a.b 40 80 60 100 75 125 90 150
c.i 25 25 25 25 25 25 25 25
d 80 80 80 80 100 100 100 100
e.f 100 150 100 150 125 200 125 175
g 75 100 75 100 75 100 75 100
j 100 100 100 100 125 125 125 125
m 40 80 60 100 75 125 90 150
DN 300 300 400 400 500 500 600 600
H 7480 7480 7510 7510 7580 7580 7660 7660
Output 10-20 10-20 20-30 20-30 30-40 30-40 40-50 40-50



  YKSL-70 YKSL-70 YKSL-80 YKSL-80 YKSL-90 YKSL-90 YKSL-100 YKSL-100
  Nominal diameter Connec- tion size Nominal diameter Connec- tion size Nominal diameter Connec- tion size Nominal diameter Connec- tion size
a.b 90 150 120 200 135 200 150 200
c.i 25 250 25 25 25 25 25 25
d 100 100 125 125 125 125 125 125
e.f 150 200 150 250 200 250 200 200
g 75 100 75 100 75 100 75 100
j 125 125 150 150 150 150 150 150
m 90 150 120 200 135 200 150 150
DN 700 700 800 800 900 900 100 100
H 7660 7660 7710 7710 7760 7760 7760 7760
Output 50-60 50-60 60-70 60-70 70-80 70-80 80-90 80-90



Others
