化工流程泵

化学过程无泄漏磁泵

TCAF Series Chemical process fluorine lined with no leakage magnetic pump

化学过程无泄漏磁泵

TCAF系列化学工艺无链磁泵利用磁性耦合进行密封,从而实现了零泄漏。

  • 量:

    1
  • 包裹:

    Customzied
  • 颜色:

    Customzied
  • 材料:

    Steel
  • 工作温度:

    -30 to 180 ℃
  • 工作压力:

    2.5 MPa



产品评论

TCAF系列无泄漏的磁性驱动离心化学工艺泵设计并根据API685-2000标准进行开发。



High Temperature Oem Moq 1pc Fully Automatic Magnetic Pump Liquid Filling Machine 2hp-75hp Single-stage Liquid Transfer Pump Magnetic Drive Gear Pump outlet Size 20mm-100mm Magnetic Drive Chemical Centrifugal Pump

与流体接触的所有部分(流通道部分)均由荧光塑料制成,使其能够运输腐蚀性培养基,例如酸,碱和氧化剂,无论其浓度如何(强度)。隔离套筒是由具有高强度机械性能的特殊材料制成的,并有效地消除了磁泵内磁性涡流的发生。

  • 产品
  • 优势
  • 1。利用一种独特的磁性驱动装置,该设备具有密集的磁收集和磁路耦合。
  • 2。泵主体是通过整体烧结和压制来制造的,碳钢用作基本材料,并衬有荧光塑料。



同时,内部转子,泵盖,叶轮,隔离套筒和其他溢出零件是通过整体烧结和压制制造的,其中金属插入物用氟塑料包裹。

3。泵轴是通过用荧光塑料包裹的烧结和按下CR13制成的。 这种设计可防止传统磁泵轴通常遇到的轴断裂问题。 4。轴套筒和滑动轴承由高磨损的碳化硅制成,并配备润滑凹槽,从而确保泵的使用寿命。 材料清单 部分 材料
① 部分 材料 ⑨ 部分 材料 ⑰泵主体 45#
② ZG线F50/PFA 支持 ⑩ 永久磁/45#线F50 泵耦合 ⑱ 叶轮 304
③ 45#linef50 外磁铁 ⑪ 永久磁/ZG 膜片 ⑲ 泵轴 45#
④ SIC/SSIC 连接框架 ⑫ ZG 电耦合 ⑳轴袖 SIC/SSIC/45线F50
⑤ 轴承的前腺 ZG/A3 ⑬ 开放式火花免费 ㉑ 推力coter SIC/SSIC
⑥ 前轴承 GCR15 ⑭ 发动机 根据客户端请求 ㉒ 泵盖 ZG/F50/PFA
⑦ 轴承盒 ZG ⑮ 地面 ZG/A3
⑧ 垫圈 F4/fkm ⑯ 后轴承 GCR15



内磁铁



永久磁/45#钢/F50



背腺 ZG/A3 结构图 :性能范围 设计压力: 2.5MPA, 流动 :5.5〜1900m³/h,

举起 : -30~180℃.



16〜200m,

碱制作

留言
如果您对我们的产品感兴趣并且想知道更多详细信息,请在此处留言,我们会尽快回复您。
提交

相关产品

no leakage petrochemical magnetic pump
无泄漏石化磁泵

TCA/E No-leakage石化磁泵专门设计用于石化工业。它最引人注目的特征是没有泄漏,这大大提高了操作安全性。

细节
DBY New Type Electric Diaphragm Pump
新型电动隔膜泵

DBY 新型电动隔膜泵可为工业应用提供高效、无泄漏的流体输送,具有结构耐用、能耗低、运行安静等特点。

细节

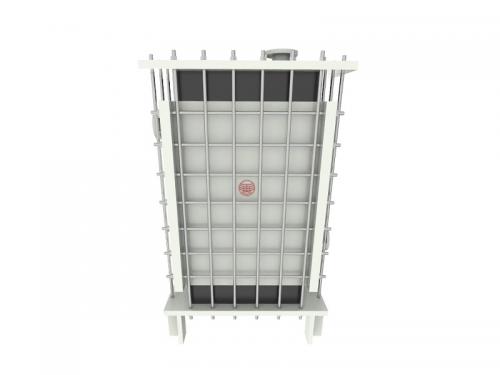

YKX graphite falling film absorber
