The round block hole graphite falling film absorber efficiently cools and absorbs gases using a vertical, corrosion-resistant graphite structure with uniform liquid distribution.
支付:
TT L/C PayPal Westunion Moneygram产品起源:
China， Anhui province运输端口:
Shanghai交货时间:
1 Month量:
1包裹:
Wooden case颜色:
Customzied材料:
Graphite工作温度:
≤170℃工作压力:
Vertical≤0.1Mpa,Horizontal≤0.4Mpa
Product review
Its structure and principle bear resemblance to those of tubular graphite falling film absorbers. Besides possessing the same characteristics as the tube-type graphite falling film absorber, it also offers the advantages of high structural strength, excellent heat shock resistance, high heat transfer efficiency, and convenient maintenance. It is a gas absorption equipment with outstanding performance.
Product advantages
The Round Block Hole Graphite Falling Film Absorber features high heat transfer efficiency, outstanding chemical corrosion resistance, good mechanical strength, uniform fluid distribution, large processing capacity, stable operation, easy maintenance, and a long service life.
Structural diagram
| Parts details | |
| 1 | Air inlet |
| 2 | Graphite gas-liquid mixing chamber |
| 3 | Liquid inlet |
| 4 | Graphite pressure stabilizing ring |
| 5 | Graphite distribution head |
| 6 | Vent |
| 7 | Cooling water outlet |
| 8 | Equipment support |
| 9 | Graphite heat exchange block |
| 10 | Cooling water inlet |
| 11 | Drain port |
| 12 | Gas liquid separation chamber |
| 13 | Tail gas outlet |
| 14 | Acid outlet |
| Model | Specifications M² | a.e Tube | b.c Tube DN | f.g Tube DN | d Tube | h Tube | |||
| D1 | D2 | D3 | D4 | D5 | D6 | ||||
| YKX30 | 5 | 50 | 145 | 50 | 20 | 100 | 210 | 65 | 160 |
| YKX40 | 10 | 65 | 160 | 50 | 20 | 150 | 295 | 75 | 180 |
| YKX50 | 12 | 75 | 180 | 65 | 20 | 200 | 350 | 100 | 210 |
| 15 | |||||||||
| YKX60 | 20 | 100 | 210 | 80 | 20 | 250 | 400 | 125 | 240 |
| 25 | |||||||||

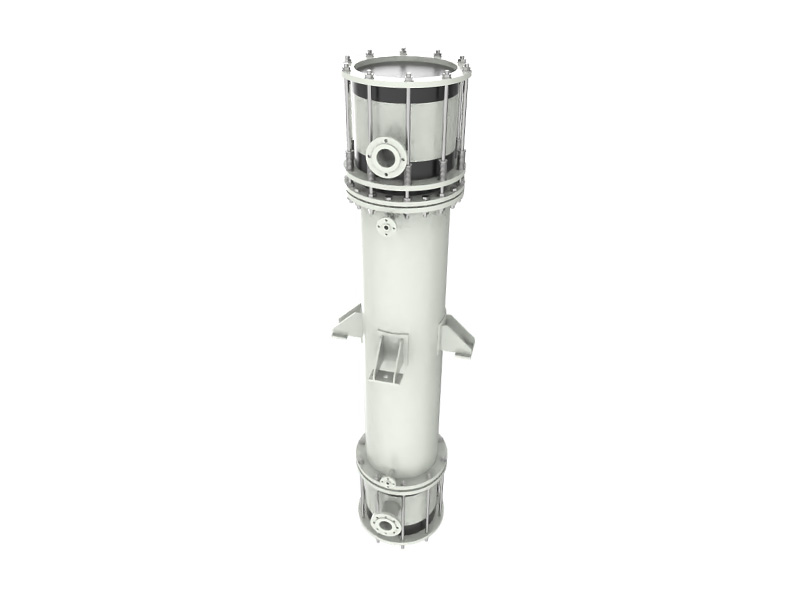

Shell and tube graphite falling film absorbers are specialized devices used in various industrial applications for their excellent thermal and chemical resistance properties. These absorbers are designed to efficiently absorb gases while providing effective cooling and separation processes.
